Gowanda’s 930T5004 is a self-leaded high inductance toroidal inductor, designed for medium frequency applications. It features a weight of 54 grams and dimensions of 35.56 × 35.56 × 17.78 mm, making it part of the T-Large series. This through-hole technology (THT) component is built to COTS+ application grade standards, offering an inductance of 5000 µH with a tolerance of ±2%. It has a direct current resistance (DCR) of 0.7 Ω and a current rating of 1.043 A DC, with a self-resonant frequency (SRF) of 0.25 MHz. The inductor is designed to operate within a temperature range of -40°C to +105°C and has a moisture sensitivity level (MSL) of 1. It features Pb termination type with a Sn63Pb37 finish and is available in bulk packaging.
| Weight | 54 g |
|---|---|
| Dimensions | 35.56 × 35.56 × 17.78 mm |
| Series | T-Large |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 5000 |
| DCR (Ω) | 0.7 |
| Current Rating (A DC) | 1.043 |
| SRF (MHz) | 0.25 |
| Frequency | Medium |
| Tolerance | ±2% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -40°C to +105°C |
| MSL | 1 |
| Packaging | Bulk |

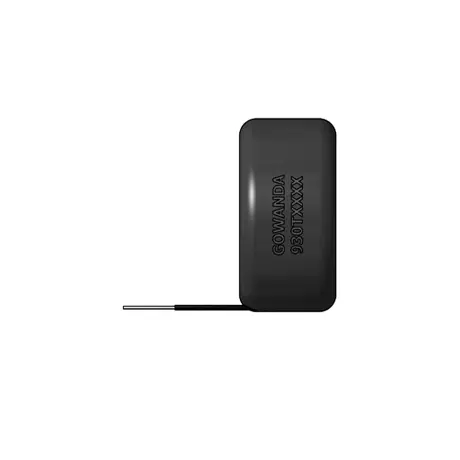

Self-Leaded High Inductance Toroidal Inductor
