C070FL1538G6

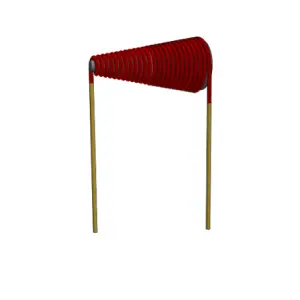

Gowanda’s C070FL1538G6 is a high-quality broadband conical flying lead inductor, designed for reliable performance in electronic applications. Weighing just 0.0069 grams, this component features compact dimensions of 1.778 × 0.779 × 0.779 mm and is part of the C070FL series. It is a through-hole technology (THT) mounted inductor with an inductance of 0.165 µH, a direct current resistance (DCR) of 0.08 Ω, and a current rating of 0.625 A DC. The inductor is constructed with 15 turns of gold-plated copper wire, utilizing a powdered iron core, and is RoHS compliant with a copper termination finish. It operates efficiently within a temperature range of -55°C to +125°C and is packaged in bulk. Additionally, it is fungal inert, ensuring durability and reliability in various environments.

Weight 0.0069 g
Dimensions 1.778 × 0.779 × 0.779 mm
Series

C070FL

Mounting Type

THT

Inductance (µH)

0.165

DCR (Ω)

0.08

Current Rating (A DC)

0.625

Turns

15

Wire Size (AWG)

38

Termination Type

RoHS

Termination Finish

Cu

Core

Powdered Iron

Wire Type

Gold Plated Copper

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

Bulk

Fungal Inert

Yes

  • Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
  • All non-tolerance and electrical data are reference only and based on nominal data
  • Materials are fungus-inert to meet method 508 of MIL-STD-810H
  • Custom designs are available to meet your specific requirements; please contact factor

* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
