C070SM2040G6

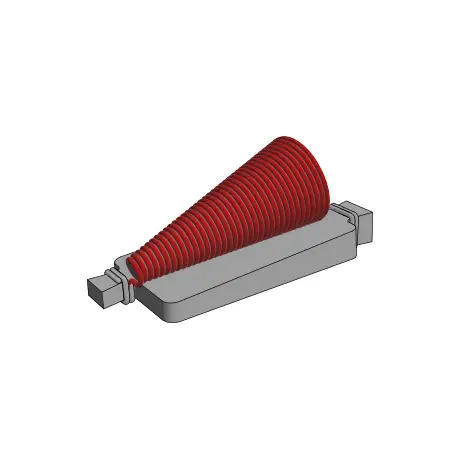

Gowanda’s C070SM2040G6 is a high-quality broadband conical surface mount inductor, designed for reliable performance in electronic applications. Weighing just 0.01 grams, it features compact dimensions of 2.67 × 1.02 × 1.11 mm and belongs to the C070SM series. This SMT inductor offers an inductance of 0.265 µH, a DCR of 0.17 Ω, and a current rating of 0.425 A DC, with 20 turns of gold-plated copper wire. It is constructed with a powdered iron core and has a RoHS-compliant copper termination finish. The inductor operates effectively within a temperature range of -55°C to +125°C and is packaged in tape and reel format. It is also fungal inert, ensuring durability and reliability in various environments.

Weight 0.01 g
Dimensions 2.67 × 1.02 × 1.11 mm
Series

C070SM

Mounting Type

SMT

Inductance (µH)

0.265

DCR (Ω)

0.17

Current Rating (A DC)

0.425

Turns

20

Wire Size (AWG)

40

Termination Type

RoHS

Termination Finish

Cu

Core

Powdered Iron

Wire Type

Gold Plated Copper

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

  • Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
  • All non-tolerance and electrical data are reference only and based on nominal data
  • Terminal is elongated to allow for soldering close to the tip of the coil
  • Recommended that component is epoxied to substrate before reflow soldering
  • Materials are fungus-inert to meet method 508 of MIL-STD-810H
  • Custom designs are available to meet your specific requirements; please contact factor

* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
