C1000FL5726G6

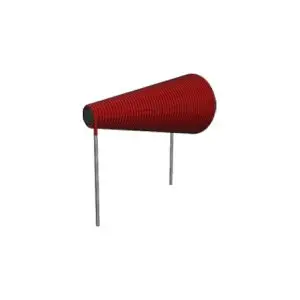

Gowanda’s C1000FL5726G6 is a high-quality broadband conical flying lead inductor, designed for reliable performance in various electronic applications. Weighing 9 grams and measuring 25.4 × 11.43 × 11.43 mm, this inductor is part of the C1000FL series and features a through-hole mounting type. It offers an inductance of 22 µH, a DCR of 0.215 Ω, and a current rating of 2.7 A DC. Constructed with 57 turns of gold-plated copper wire, it utilizes a powdered iron core and is RoHS compliant with a copper termination finish. The inductor operates efficiently within a temperature range of -55°C to +125°C and has a moisture sensitivity level of 1. It is packaged in bulk and is fungal inert, ensuring durability and reliability in demanding environments.

Weight 9 g
Dimensions 25.4 × 11.43 × 11.43 mm
Series

C1000FL

Mounting Type

THT

Inductance (µH)

22

DCR (Ω)

0.215

Current Rating (A DC)

2.7

Turns

57

Wire Size (AWG)

26

Termination Type

RoHS

Termination Finish

Cu

Core

Powdered Iron

Wire Type

Gold Plated Copper

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

Bulk

Fungal Inert

Yes

  • Current Rating is based on a 100°C temperature rise at an ambient temperature of 25°C
  • All non-tolerance and electrical data are reference only and based on nominal data
  • Materials are fungus-inert to meet method 508 of MIL-STD-810H
  • Custom designs are available to meet your specific requirements; please contact factor

* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
