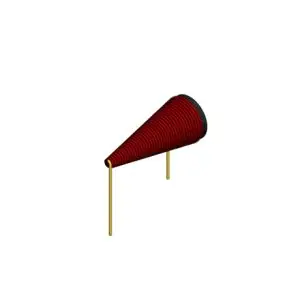

Gowanda’s C100FL3944G6 is a high-quality broadband conical flying lead inductor, designed for reliable performance in electronic applications. Weighing just 0.0069 grams and measuring 2.54 × 1 × 1 mm, this component is part of the C100FL series and features a through-hole technology (THT) mounting type. It offers an inductance of 1 µH, a direct current resistance (DCR) of 0.74 Ω, and a current rating of 0.211 A DC. With 39 turns and a wire size of 44 AWG, the inductor is constructed with gold-plated copper wire and a powdered iron core. It is RoHS compliant, with a copper termination finish, and is designed to operate in temperatures ranging from -55°C to +125°C. The component is packaged in bulk, has a moisture sensitivity level (MSL) of 1, and is fungal inert, ensuring durability and reliability in various environments.
| Weight | 0.0069 g |
|---|---|
| Dimensions | 2.54 × 1 × 1 mm |
| Series | C100FL |
| Mounting Type | THT |
| Inductance (µH) | 1 |
| DCR (Ω) | 0.74 |
| Current Rating (A DC) | 0.211 |
| Turns | 39 |
| Wire Size (AWG) | 44 |
| Termination Type | RoHS |
| Termination Finish | Cu |
| Core | Powdered Iron |
| Wire Type | Gold Plated Copper |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |
| Fungal Inert | Yes |
* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
