C225SM4338G6

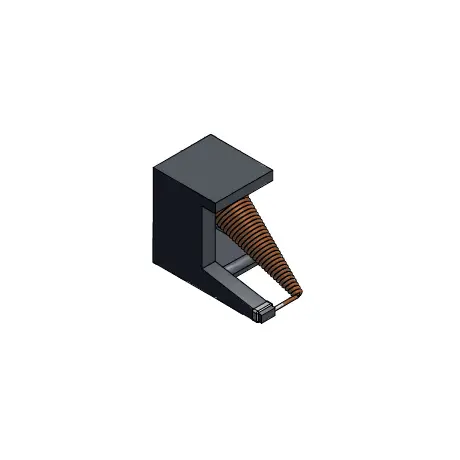

Gowanda’s C225SM4338G6 is a high-quality broadband conical surface mount inductor, designed for reliable performance in electronic applications. Weighing just 0.032 grams, this component features compact dimensions of 6.35 × 3.65 × 4.95 mm and belongs to the C225SM series. It is an SMT (Surface Mount Technology) type inductor with an inductance of 1.3 µH, a DCR of 0.47 Ω, and a current rating of 0.428 A DC. Constructed with 43 turns of gold-plated copper wire, it utilizes a powdered iron core and is RoHS compliant with a copper termination finish. The inductor operates efficiently across a temperature range of -55°C to +125°C and is packaged in tape and reel format. It is also fungal inert, ensuring durability and reliability in various environments.

Weight 0.032 g
Dimensions 6.35 × 3.65 × 4.95 mm
Series

C225SM

Mounting Type

SMT

Inductance (µH)

1.3

DCR (Ω)

0.47

Current Rating (A DC)

0.428

Turns

43

Wire Size (AWG)

38

Termination Type

RoHS

Termination Finish

Cu

Core

Powdered Iron

Wire Type

Gold Plated Copper

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

  • Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
  • All non-tolerance and electrical data are reference only and based on nominal data
  • Terminal is elongated to allow for soldering close to the tip of the coil
  • Recommended that component is epoxied to substrate before reflow soldering
  • Materials are fungus-inert to meet method 508 of MIL-STD-810H
  • Custom designs are available to meet your specific requirements; please contact factor

* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
