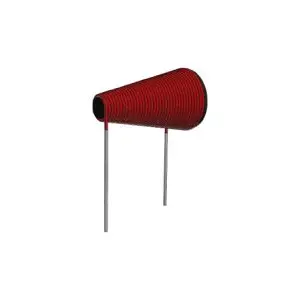

Gowanda’s C550FL1520G6 is a high-quality broadband conical flying lead inductor, designed for reliable performance in various applications. Weighing 3.1 grams and measuring 13.97 × 7.62 × 7.62 mm, this inductor is part of the C550FL series and features a through-hole technology (THT) mounting type. It offers an inductance of 1.2 µH, a low DCR of 0.02 Ω, and a current rating of 10.5 A DC. The inductor is constructed with 15 turns of gold-plated copper wire, sized at 20 AWG, and utilizes a powdered iron core. It is RoHS compliant with a copper termination finish and is designed to operate within a temperature range of -55°C to +125°C. The product is fungal inert, has a moisture sensitivity level (MSL) of 1, and is available in bulk packaging.
| Weight | 3.1 g |
|---|---|
| Dimensions | 13.97 × 7.62 × 7.62 mm |
| Series | C550FL |
| Mounting Type | THT |
| Inductance (µH) | 1.2 |
| DCR (Ω) | 0.02 |
| Current Rating (A DC) | 10.5 |
| Turns | 15 |
| Wire Size (AWG) | 20 |
| Termination Type | RoHS |
| Termination Finish | Cu |
| Core | Powdered Iron |
| Wire Type | Gold Plated Copper |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |
| Fungal Inert | Yes |
* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
