C750FL2220G6

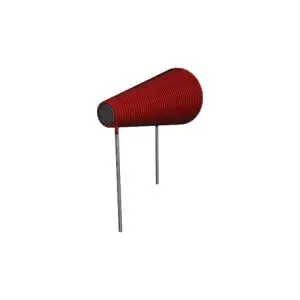

Gowanda’s C750FL2220G6 is a high-quality Broadband Conical Flying Lead Inductor, designed for reliable performance in electronic applications. Weighing 5.5 grams and measuring 19.05 × 9.398 × 9.398 mm, this inductor is part of the C750FL series and features a Through-Hole Technology (THT) mounting type. It offers an inductance of 2.5 µH, a DCR of 0.02 Ω, and a current rating of 8.1 A DC. Constructed with 22 turns of gold-plated copper wire (AWG 20) and a powdered iron core, it is RoHS compliant with a copper termination finish. The inductor operates effectively within a temperature range of -55°C to +125°C, has a moisture sensitivity level (MSL) of 1, and is packaged in bulk. Additionally, it is fungal inert, ensuring durability and reliability in various environments.

Weight 5.5 g
Dimensions 19.05 × 9.398 × 9.398 mm
Series

C750FL

Mounting Type

THT

Inductance (µH)

2.5

DCR (Ω)

0.02

Current Rating (A DC)

8.1

Turns

22

Wire Size (AWG)

20

Termination Type

RoHS

Termination Finish

Cu

Core

Powdered Iron

Wire Type

Gold Plated Copper

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

Bulk

Fungal Inert

Yes

  • Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
  • All non-tolerance and electrical data are reference only and based on nominal data
  • Materials are fungus-inert to meet method 508 of MIL-STD-810H
  • Custom designs are available to meet your specific requirements; please contact factor

* Meets a TML (Total Mass Loss) requirement of 1.0% maximum when tested in accordance with ASTM E595; this calculation does not include WVR (Water Vapor Recovered)
