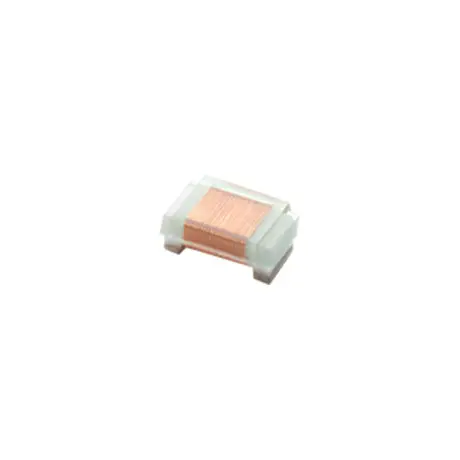

Gowanda’s CC0603-0068K is a high-quality ceramic surface mount chip inductor designed for reliable performance in electronic applications. Weighing just 0.05 grams, this compact component measures 1.8 × 1.12 × 1.02 mm and belongs to the CC0603 series. It features a surface mount technology (SMT) mounting type and offers an inductance of 6.8 µH with a Q minimum of 30. The inductor is tested at a frequency of 250 MHz, with a DC resistance of 0.1 Ω and a self-resonant frequency of 5800 MHz. It supports a current rating of 0.841 A DC and has a tolerance of ±10%. The termination type is RoHS compliant with a copper finish, and it is built with a ceramic core. Operating efficiently in temperatures ranging from -55°C to +125°C, the CC0603-0068K is not shielded, has a moisture sensitivity level of 1, and is packaged in tape and reel format. Additionally, it is fungal inert, ensuring durability and reliability in various environments.
| Weight | 0.05 g |
|---|---|
| Dimensions | 1.8 × 1.12 × 1.02 mm |
| Series | CC0603 |
| Mounting Type | SMT |
| Inductance (µH) | 6.8 |
| Q MIN | 30 |
| Test Freq (MHz) | 250 |
| DCR (Ω) | 0.1 |
| SRF (MHz) | 5800 |
| Current Rating (A DC) | 0.841 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Cu |
| Core | Ceramic |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
Ceramic Surface Mount Chip Inductor
