CC4H1812-056G

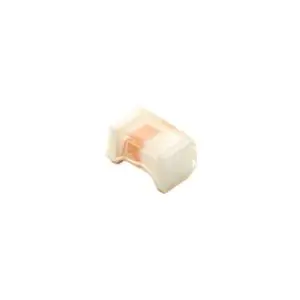

Gowanda’s CC4H1812-056G is a high-performance ceramic surface mount chip inductor designed for demanding electronic applications. Weighing just 0.035 grams and measuring 4.8 × 2.7 × 2.9 mm, this component is part of the CC4H1812 series and features a surface mount technology (SMT) for easy integration. It offers an inductance of 56 µH with a minimum Q factor of 50 at a test frequency of 50 MHz. The inductor has a direct current resistance (DCR) of 0.135 Ω and a self-resonant frequency (SRF) of 1200 MHz, supporting a current rating of 1.56 A DC. With a tolerance of ±2%, it is RoHS compliant and features a copper termination finish. The ceramic core is non-shielded, and the component operates efficiently across a temperature range of -55°C to +125°C. It has a moisture sensitivity level (MSL) of 1 and is packaged in tape and reel (T&R) format, ensuring fungal inertness for reliable performance in various environments.
