CF1008-103G

Gowanda’s CF1008-103G is a high-quality ferrite surface mount chip inductor designed for reliable performance in electronic applications. Weighing just 0.05 grams, this compact component measures 2.92 × 2.8 × 2.28 mm and belongs to the CF1008 series. It features a surface mount technology (SMT) mounting type and offers an inductance of 100 µH with a minimum Q factor of 13. The inductor is tested at a frequency of 2.5 MHz, with a direct current resistance (DCR) of 28 ohms and a self-resonant frequency (SRF) of 3.3 MHz. It supports a current rating of 0.079 A DC and maintains a tolerance of ±2%. The termination type is RoHS compliant with a copper finish, and the core is made of ferrite. Although it is not shielded, it operates efficiently within a temperature range of -55°C to +125°C and has a moisture sensitivity level (MSL) of 1. Packaged in tape and reel (T&R) format, the CF1008-103G is also fungal inert, ensuring durability and reliability in various environments.

Weight 0.05 g
Dimensions 2.92 × 2.8 × 2.28 mm
Series

CF1008

Mounting Type

SMT

Inductance (µH)

100

Q MIN

13

Test Freq (MHz)

2.5

DCR (Ω)

28

SRF (MHz)

3.3

Current Rating (A DC)

0.079

Tolerance

±2%

Termination Type

RoHS

Termination Finish

Cu

Core

Ferrite

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

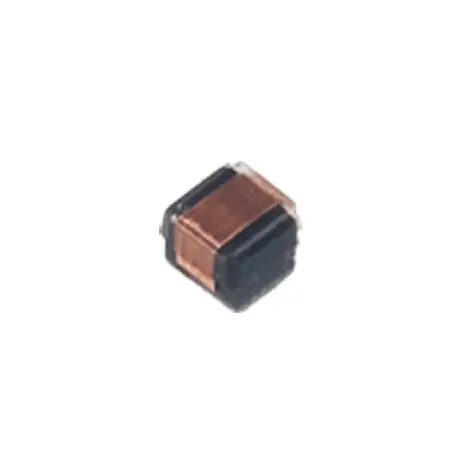

Ferrite Surface Mount Chip Inductor
