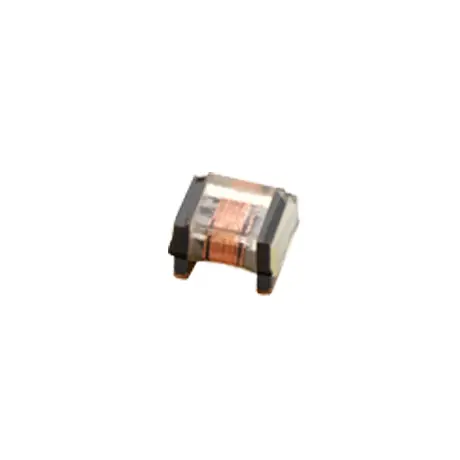

CF4H1210-100K

Gowanda’s CF4H1210-100K is a high-performance ferrite surface mount chip inductor, designed for reliability and efficiency in electronic applications. Weighing just 0.08 grams and measuring 3.3 × 2.79 × 2.41 mm, this inductor is part of the CF4H1210 series and features a surface mount technology (SMT) for easy integration. It offers an inductance of 0.1 µH with a minimum Q factor of 45, tested at a frequency of 25 MHz. The device has a direct current resistance (DCR) of 0.07 Ω and a self-resonant frequency (SRF) of 1100 MHz, supporting a current rating of 2.17 A DC with a tolerance of ±10%. The inductor is RoHS compliant with a copper termination finish and operates effectively within a temperature range of -55°C to +125°C. It is packaged in tape and reel (T&R) format, is fungal inert, and has a moisture sensitivity level (MSL) of 1, ensuring durability and performance in various environments.

Weight 0.08 g
Dimensions 3.3 × 2.79 × 2.41 mm
Series

CF4H1210

Mounting Type

SMT

Inductance (µH)

0.1

Q MIN

45

Test Freq (MHz)

25

DCR (Ω)

0.07

SRF (MHz)

1100

Current Rating (A DC)

2.17

Tolerance

±10%

Termination Type

RoHS

Termination Finish

Cu

Core

Ferrite

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

Ferrite High Performance Surface Mount Chip Inductor
