CF4H1812-682K

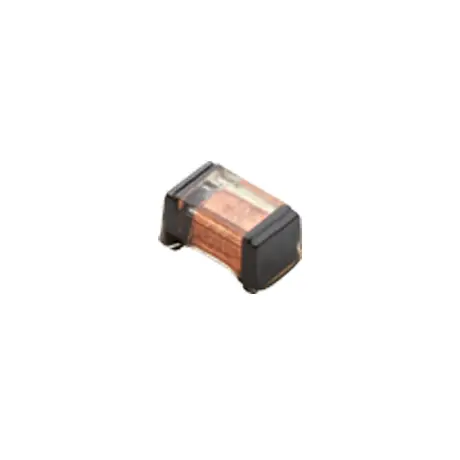

Gowanda’s CF4H1812-682K is a high-performance ferrite surface mount chip inductor designed for demanding electronic applications. Weighing just 0.12 grams and measuring 4.8 × 2.7 × 2.9 mm, this inductor is part of the CF4H1812 series and features a surface mount technology (SMT) mounting type. It offers an inductance of 68 µH with a minimum Q factor of 50, tested at a frequency of 2.5 MHz. The device has a DC resistance of 4.9 ohms and a self-resonant frequency of 20 MHz, with a current rating of 0.24 A DC and a tolerance of ±10%. The inductor is RoHS compliant with copper termination finish and operates effectively within a temperature range of -55°C to +125°C. It is packaged in tape and reel (T&R) format, is fungal inert, and has a moisture sensitivity level (MSL) of 1, ensuring reliability and durability in various applications.

Weight 0.12 g
Dimensions 4.8 × 2.7 × 2.9 mm
Series

CF4H1812

Mounting Type

SMT

Inductance (µH)

68

Q MIN

50

Test Freq (MHz)

2.5

DCR (Ω)

4.9

SRF (MHz)

20

Current Rating (A DC)

0.24

Tolerance

±10%

Termination Type

RoHS

Termination Finish

Cu

Core

Ferrite

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

Ferrite High Performance Surface Mount Chip Inductor
