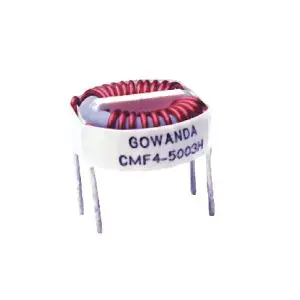

Gowanda’s CMF4-1004H is a high-quality, horizontally mounted common mode choke designed for reliable performance in demanding applications. Weighing 14 grams and measuring 25.4 × 25.4 × 10.16 mm, this component is part of the CMF4H series and features through-hole technology (THT) for secure mounting. It is suitable for COTS+ application grades, offering an inductance of 1000 µH and a direct current resistance (DCR) of 0.018 Ω. The choke supports a current rating of 5.7 A DC, with an interwinding capacitance of 12 pF and a leakage inductance of 11 µH. It has a dielectric withstanding voltage (DWV) of 1250 and a tolerance of ±30%. The termination type is lead-based with a Sn63Pb37 finish, and it operates effectively in temperatures ranging from -55°C to +125°C. With a moisture sensitivity level (MSL) of 1, it is packaged in bulk and is not fungal inert.
| Weight | 14 g |
|---|---|
| Dimensions | 25.4 × 25.4 × 10.16 mm |
| Series | CMF4H |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 1000 |
| DCR (Ω) | 0.018 |
| Current Rating (A DC) | 5.7 |
| Interwinding Capacitance (pF) | 12 |
| Leakage Inductance (µH) | 11 |
| DWV | 1250 |
| Tolerance | ±30% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |
| Fungal Inert | No |
Horizontal Mount Common Mode Choke
