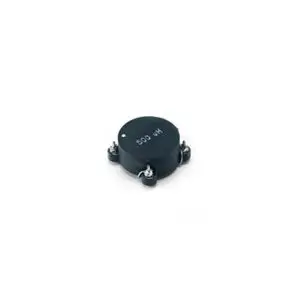

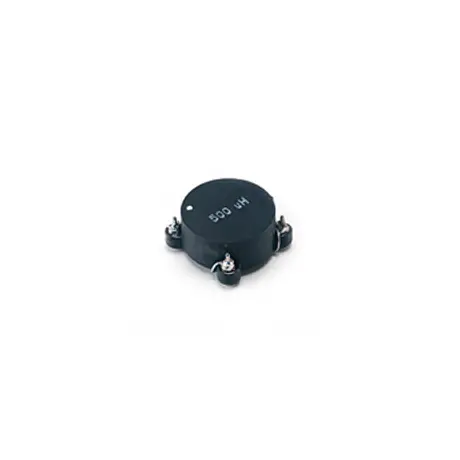

Gowanda’s CMF61-1504SM is a surface-mount common mode transformer choke designed for high-quality, reliable electronic applications. This component, part of the CMF61SM series, features a compact design with dimensions of 6.35 × 6.35 × 5.08 mm and a weight of 0.5 grams. It is suitable for COTS+ application grades, offering an inductance of 1500 µH and a direct current resistance of 0.5 Ω. The choke supports a current rating of 0.24 A DC and has a leakage inductance of 4.3 µH. With a dielectric withstanding voltage of 1250, it operates efficiently within a temperature range of -55°C to +125°C. The component is shielded, ensuring minimal interference, and features a termination type of Pb with a Sn63Pb37 finish. It is packaged in tape and reel format and has a moisture sensitivity level of 1, although it is not fungal inert.
| Weight | 0.5 g |
|---|---|
| Dimensions | 6.35 × 6.35 × 5.08 mm |
| Series | CMF61SM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 1500 |
| DCR (Ω) | 0.5 |
| Current Rating (A DC) | 0.24 |
| Leakage Inductance (µH) | 4.3 |
| DWV | 1250 |
| Tolerance | ±30% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | No |
SMT Common Mode Transformer Choke
