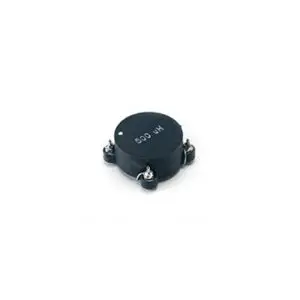

Gowanda’s CMF63-4702SM is a high-quality common mode transformer choke designed for reliable performance in electronic applications. Weighing just 0.85 grams and measuring 8.9 × 8.9 × 5.08 mm, this component is part of the CMF63SM series and features a surface-mount technology (SMT) for easy integration. It is suitable for COTS+ application grades, offering an inductance of 47 µH and a direct current resistance (DCR) of 0.008 Ω. With a current rating of 5 A DC and a leakage inductance of 0.3 µH, it ensures efficient operation. The device is shielded, operates within a temperature range of -55°C to +125°C, and has a dielectric withstanding voltage (DWV) of 1250. It comes with a termination type of Pb and a termination finish of Sn63Pb37, packaged in tape and reel (T&R) format, and is rated with a moisture sensitivity level (MSL) of 1.
| Weight | 0.85 g |
|---|---|
| Dimensions | 8.9 × 8.9 × 5.08 mm |
| Series | CMF63SM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 47 |
| DCR (Ω) | 0.008 |
| Current Rating (A DC) | 5 |
| Leakage Inductance (µH) | 0.3 |
| DWV | 1250 |
| Tolerance | ±25% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | No |
SMT Common Mode Transformer Choke
