Gowanda’s CMF64-1005SMLF is a high-quality common mode transformer choke designed for demanding applications. With a weight of 2.8 grams and compact dimensions of 12.44 × 12.44 × 7.37 mm, it belongs to the CMF64SM series and features surface mount technology (SMT) for ease of integration. This component is classified as COTS+ application grade, offering an inductance of 10000 µH and a direct current resistance (DCR) of 0.9 Ω. It supports a current rating of 0.33 A DC and has a leakage inductance of 29 µH. The device is shielded, ensuring minimal electromagnetic interference, and operates within a temperature range of -55°C to +125°C. It is RoHS compliant with Sn100 termination finish and is packaged in tape and reel (T&R) format for efficient handling. The CMF64-1005SMLF is not fungal inert and has a moisture sensitivity level (MSL) of 1, making it suitable for a wide range of electronic applications.
| Weight | 2.8 g |
|---|---|
| Dimensions | 12.44 × 12.44 × 7.37 mm |
| Series | CMF64SM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 10000 |
| DCR (Ω) | 0.9 |
| Current Rating (A DC) | 0.33 |
| Leakage Inductance (µH) | 29 |
| DWV | 1250 |
| Tolerance | ±25% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | No |

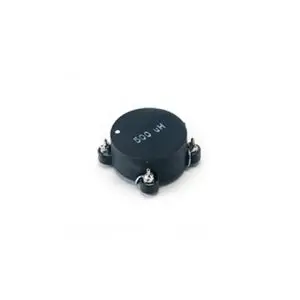

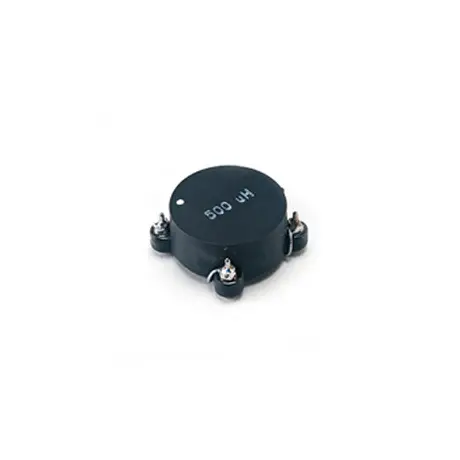

SMT Common Mode Transformer Choke
