Gowanda’s CMF65-1804SM is a high-quality common mode transformer choke designed for demanding applications. With a compact size of 15.8 × 15.8 × 7.88 mm and a weight of 4 grams, it is suitable for surface mount technology (SMT) installations. This component is part of the CMF65SM series and is classified as COTS+ application grade, ensuring reliability in various environments. It features an inductance of 1800 µH, a direct current resistance (DCR) of 0.08 Ω, and a current rating of 1.9 A DC. The choke is shielded and operates within a temperature range of -55°C to +125°C, making it versatile for different conditions. It has a dielectric withstanding voltage (DWV) of 1250 and a leakage inductance of 13 µH. The termination type is Pb with a Sn63Pb37 finish, and it is packaged in tape and reel (T&R) format. The component has a moisture sensitivity level (MSL) of 1, indicating high reliability.
| Weight | 4 g |
|---|---|
| Dimensions | 15.8 × 15.8 × 7.88 mm |
| Series | CMF65SM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 1800 |
| DCR (Ω) | 0.08 |
| Current Rating (A DC) | 1.9 |
| Leakage Inductance (µH) | 13 |
| DWV | 1250 |
| Tolerance | ±25% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | No |

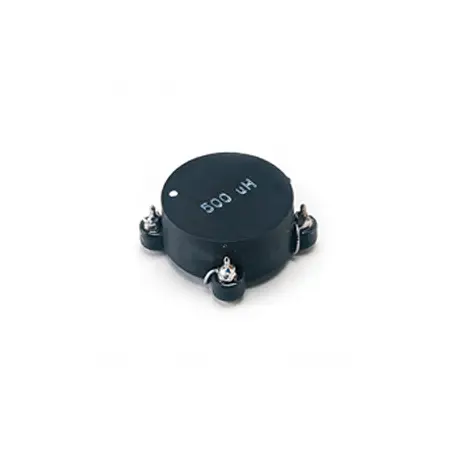

SMT Common Mode Transformer Choke
