The GCS-200VCLF is a Vertical Mount Potted Current Sense Transformer from Gowanda, designed for high reliability in electronic applications. Weighing 2 grams and measuring 20.33 × 17.02 × 9.53 mm, this component is part of the GCSVC series and features a Through-Hole Technology (THT) mounting type. It is classified under the COTS+ application grade, ensuring suitability for commercial off-the-shelf applications with enhanced performance. The transformer boasts an inductance of 118000 µH, a direct current resistance (DCR) of 4.1 Ω, and a current rating of 0.79 A DC, with 200 turns. It is RoHS compliant with a Sn100 termination finish, operates within a temperature range of -40°C to +125°C, and has a moisture sensitivity level (MSL) of 1. The product is available in bulk packaging.
| Weight | 2 g |
|---|---|
| Dimensions | 20.33 × 17.02 × 9.53 mm |
| Series | GCSVC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 118000 |
| DCR (Ω) | 4.1 |
| Current Rating (A DC) | 0.79 |
| Turns | 200 |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Operating Temperature | -40°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |

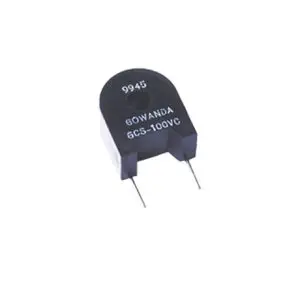

Vertical Mount Potted Current Sense Transformer
