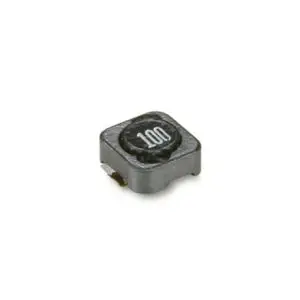

Gowanda’s GP3073-181MLF is a high-quality, reliable shielded power choke designed for demanding applications. Weighing 0.85 grams and measuring 7.3 × 7.3 × 3.55 mm, this component is part of the GP3073 series and is suitable for surface mount technology (SMT). It is classified under the COTS+ application grade, offering an inductance of 180 µH with a direct current resistance (DCR) of 1.45 Ω and a current rating of 0.62 A DC. The component operates effectively across a wide temperature range from -55°C to +125°C and is tested at a frequency of 1 MHz. With a tolerance of ±20%, it features RoHS-compliant Sn100 termination and a ferrite core, ensuring it is shielded for optimal performance. The GP3073-181MLF is packaged in tape and reel (T&R) format and has a moisture sensitivity level (MSL) of 1, making it ideal for various electronic applications.
| Weight | 0.85 g |
|---|---|
| Dimensions | 7.3 × 7.3 × 3.55 mm |
| Series | GP3073 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 180 |
| DCR (Ω) | 1.45 |
| Current Rating (A DC) | 0.62 |
| Test Freq (MHz) | 1 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Shielded Power Choke
