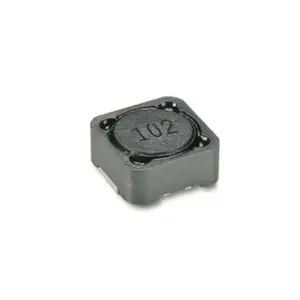

Gowanda’s GP3125-121MLF is a shielded power choke designed for high reliability and performance in electronic applications. Weighing 0.85 grams and measuring 12 × 12 × 6 mm, this component is part of the GP3125 series and features surface mount technology (SMT) for easy integration. It is classified as COTS+ grade, ensuring suitability for commercial off-the-shelf applications. With an inductance of 120 µH, a direct current resistance (DCR) of 0.25 Ω, and a current rating of 1.1 A DC, it operates efficiently at a test frequency of 1 MHz. The component offers a tolerance of ±20% and is RoHS compliant with a Sn100 termination finish. Constructed with a ferrite core and shielded design, it operates reliably within a temperature range of -55°C to +125°C and has a moisture sensitivity level (MSL) of 1, making it ideal for various demanding environments. The GP3125-121MLF is available in tape and reel (T&R) packaging for streamlined handling and assembly.
| Weight | 0.85 g |
|---|---|
| Dimensions | 12 × 12 × 6 mm |
| Series | GP3125 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 120 |
| DCR (Ω) | 0.25 |
| Current Rating (A DC) | 1.1 |
| Test Freq (MHz) | 1 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Shielded Power Choke
