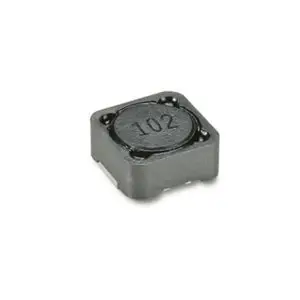

Gowanda’s GP3127-6R8MLF is a high-quality, reliable shielded power choke designed for demanding applications. Weighing 0.85 grams and measuring 12 × 12 × 8 mm, this component is part of the GP3127 series and features surface-mount technology (SMT) for easy integration. It is categorized under COTS+ application grade, offering an inductance of 6.8 µH with a direct current resistance (DCR) of 0.03 Ω and a current rating of 6.2 A DC. Tested at a frequency of 100 MHz, it maintains a tolerance of ±10%. The component is RoHS compliant with Sn100 termination finish and utilizes a ferrite core for effective shielding. It operates efficiently within a temperature range of -55°C to +125°C and has a moisture sensitivity level (MSL) of 1, ensuring durability and reliability in various environments. Packaged in tape and reel (T&R), it is ideal for streamlined manufacturing processes.
| Weight | 0.85 g |
|---|---|
| Dimensions | 12 × 12 × 8 mm |
| Series | GP3127 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 6.8 |
| DCR (Ω) | 0.03 |
| Current Rating (A DC) | 6.2 |
| Test Freq (MHz) | 100 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Shielded Power Choke
