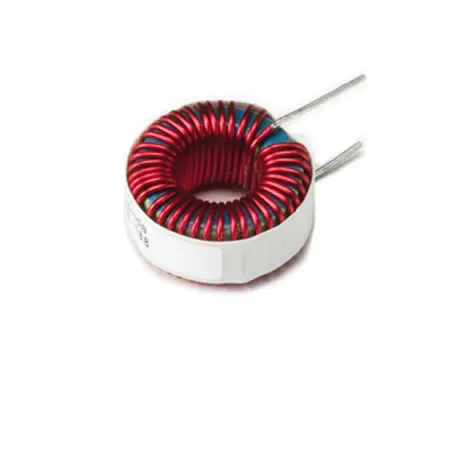

Gowanda’s GT10-106BLF is a high-quality vertical mount toroidal choke designed for reliable performance in electronic applications. Weighing 59.97 grams and measuring 31.75 × 17.78 × 33.02 mm, this component is part of the GT10 series and features through-hole technology (THT) for mounting. It is classified under the COTS+ application grade, offering an inductance of 285 µH, a direct current resistance (DCR) of 0.14 Ω, and a current rating of 3 A DC. The termination type is RoHS compliant with a Sn100 finish, and it is not shielded. The GT10-106BLF operates efficiently within a temperature range of -55°C to +125°C, has a moisture sensitivity level (MSL) of 1, and is available in tape and reel (T&R) packaging.
| Weight | 59.97 g |
|---|---|
| Dimensions | 31.75 × 17.78 × 33.02 mm |
| Series | GT10 |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 285 |
| DCR (Ω) | 0.14 |
| Current Rating (A DC) | 3 |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Vertical Mount Toroidal Choke
