Gowanda’s GT20-202-5LF is a high-quality vertical mount toroidal choke designed for reliable performance in electronic applications. Weighing 22.79 grams and measuring 23.88 × 23.88 × 16.26 mm, this component is part of the GT20 series and features through-hole technology (THT) for mounting. It is suitable for commercial off-the-shelf plus (COTS+) application grades, offering an inductance of 20 µH and a direct current resistance (DCR) of 0.02 ohms. The choke supports a current rating of 10 A DC and 5 A DC, with RoHS-compliant termination and a Sn100 finish. It operates efficiently across a wide temperature range from -55°C to +125°C and is classified with a moisture sensitivity level (MSL) of 1, ensuring durability and reliability in various environments. The product is available in bulk packaging.
| Weight | 22.79 g |
|---|---|
| Dimensions | 23.88 × 23.88 × 16.26 mm |
| Series | GT20 |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 20 |
| DCR (Ω) | 0.02 |
| Current Rating (A DC) | 10, 5 |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | Bulk |

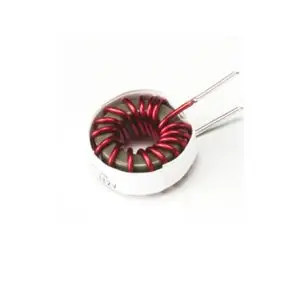

Vertical Mount Toroidal Choke
