Gowanda’s LC20-2272SM is a low current toroidal inductor designed for high reliability and performance in electronic applications. Weighing just 0.7 grams, this component features compact dimensions of 8.64 × 8.64 × 6.86 mm and belongs to the LCSM series. It is surface mountable (SMT) and suitable for commercial off-the-shelf plus (COTS+) applications. The inductor offers an inductance of 22.7 µH with a direct current resistance (DCR) of 0.125 Ω and a current rating of 1.6 A DC. It operates at a self-resonant frequency (SRF) of 23 MHz with a tolerance of ±20%. The termination type is lead-based (Pb) with a Sn63Pb37 finish, and it is capable of functioning within a temperature range of -30°C to +130°C. The component has a moisture sensitivity level (MSL) of 1 and is available in tape and reel (T&R) packaging.
| Weight | 0.7 g |
|---|---|
| Dimensions | 8.64 × 8.64 × 6.86 mm |
| Series | LCSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 22.7 |
| DCR (Ω) | 0.125 |
| Current Rating (A DC) | 1.6 |
| SRF (MHz) | 23 |
| Tolerance | ±20% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -30°C to +130°C |
| MSL | 1 |
| Packaging | T&R |

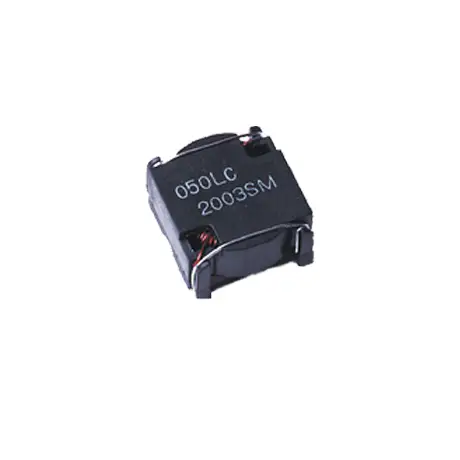

Low Current Toroidal Inductor
