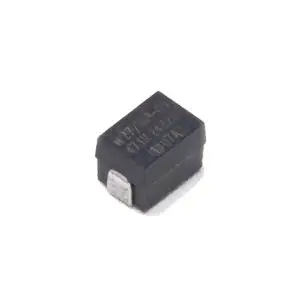

Gowanda’s MLP1812-153KT is a high-performance, molded unshielded high current inductor designed for demanding applications. Weighing 1.5 grams and measuring 4.22 × 3 × 3 mm, this inductor is part of the MLP1812 series and features surface mount technology (SMT) for easy integration. It boasts a QPL application grade with an inductance of 150 µH and a direct current resistance (DCR) of 6.432 Ω. The inductor supports a current rating of 140 A DC and can handle an increased current of 183 A DC. With a dielectric withstanding voltage (DWV) of 200, 80, and a tolerance of ±10%, it is built for reliability. The product level is T, with lead-based (Pb) termination and a Sn63Pb37 finish. Constructed with a ferrite core, it operates efficiently in temperatures ranging from -55°C to +130°C and is rated MSL 1 for moisture sensitivity. Packaged in tape and reel (T&R) format, it is also fungal inert, ensuring durability in various environments.
| Weight | 1.5 g |
|---|---|
| Dimensions | 4.22 × 3 × 3 mm |
| Series | MLP1812 |
| Mounting Type | SMT |
| Application Grade | QPL |
| Inductance (µH) | 150 |
| DCR (Ω) | 6.432 |
| Current Rating (A DC) | 140 |
| Inc I (A DC) | 183 |
| DWV | 200, 80 |
| Tolerance | ±10% |
| Product Level | T |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Core | Ferrite |
| Shielded | No |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
M27 Level-T Molded Unshielded High Current Inductor
