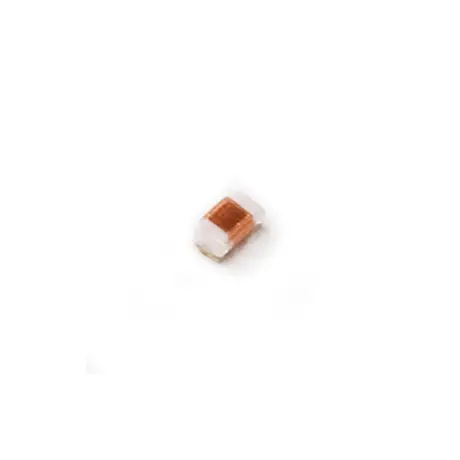

MLRF0603-0036GS

Gowanda’s MLRF0603-0036GS is a high-quality, reliable ceramic chip inductor that is M83446/36 qualified, making it suitable for demanding applications. With a weight of just 0.008 g and compact dimensions of 1.8 × 1.19 × 1.02 mm, it is designed for surface mount technology (SMT) and is part of the MLRF0603 series. This inductor features an inductance of 0.0036 µH, a DCR of 0.07 Ω, and a current rating of 1 A DC, with a self-resonant frequency (SRF) of 6000 MHz. It operates effectively across a wide temperature range from -55°C to +125°C and has a Q minimum of 22 at a test frequency of 250 MHz. The product is lead-terminated with a Sn63Pb37 finish, ensuring reliable performance, and is packaged in tape and reel (T&R) format for efficient handling.

Weight 0.008 g
Dimensions 1.8 × 1.19 × 1.02 mm
Series

MLRF0603

Mounting Type

SMT

Application Grade

QPL

Inductance (µH)

0.0036

DCR (Ω)

0.07

Current Rating (A DC)

1

SRF (MHz)

6000

Test Freq (MHz)

250

Q MIN

22

DWV

200, 80

Tolerance

±2%

Product Level

M

Termination Type

Pb

Termination Finish

Sn63Pb37

Core

Ceramic

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

M83446/36 Qualified Ceramic Chip Inductor
