MLRF0805-0068K

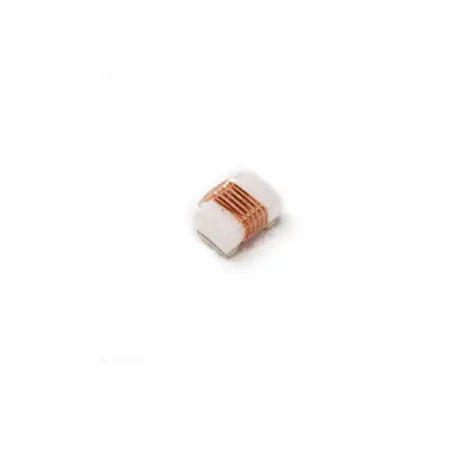

Gowanda’s MLRF0805-0068K is a high-quality, reliable ceramic chip inductor that is M83446/37 qualified, making it suitable for demanding applications. With a weight of just 0.008 g and compact dimensions of 2.41 × 1.78 × 1.52 mm, this inductor is designed for surface mount technology (SMT) and is part of the MLRF0805 series. It features an inductance of 0.0068 µH, a direct current resistance (DCR) of 0.11 Ω, and a current rating of 1 A DC. The inductor operates at a self-resonant frequency (SRF) of 4600 MHz and is tested at frequencies of 1500 and 250 MHz, with a minimum Q factor of 60. It has a dielectric withstanding voltage (DWV) of 200 and 80, and a tolerance of ±10%. The product is rated at level M and is RoHS compliant, with gold termination finish. It is built with a ceramic core and is not shielded, operating efficiently in temperatures ranging from -55°C to +125°C. The moisture sensitivity level (MSL) is 1, and it is available in tape and reel (T&R) packaging.
