Gowanda’s MLRF22M204J is a high-quality, reliable electronic component, specifically a M15305 Qualified Molded Unshielded Coil Inductor. It features a weight of 1.5 grams and dimensions of 13.97 × 5.21 × 5.21 mm. This inductor belongs to the MLRF22M series and is designed for through-hole technology (THT) mounting. It is suitable for QPL application grade with an inductance of 2000 µH, a direct current resistance (DCR) of 29 ohms, and a current rating of 0.067 A DC. The self-resonant frequency (SRF) is 2.1 MHz, with a test frequency of 0.25 MHz and a minimum Q factor of 65. It has a dielectric withstanding voltage (DWV) of 180, 700 and a tolerance of ±5%. The product level is M, with lead-based (Pb) termination and a Sn63Pb37 termination finish. The core is made of powdered iron, and the component is not shielded. It operates within a temperature range of -55°C to +105°C, has a moisture sensitivity level (MSL) of 1, and is packaged in tape and reel (T&R). Additionally, it is fungal inert.
| Weight | 1.5 g |
|---|---|
| Dimensions | 13.97 × 5.21 × 5.21 mm |
| Series | MLRF22M |
| Mounting Type | THT |
| Application Grade | QPL |
| Inductance (µH) | 2000 |
| DCR (Ω) | 29 |
| Current Rating (A DC) | 0.067 |
| SRF (MHz) | 2.1 |
| Test Freq (MHz) | 0.25 |
| Q MIN | 65 |
| DWV | 180, 700 |
| Tolerance | ±5% |
| Product Level | M |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Core | Powdered Iron |
| Shielded | No |
| Operating Temperature | -55°C to +105°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |

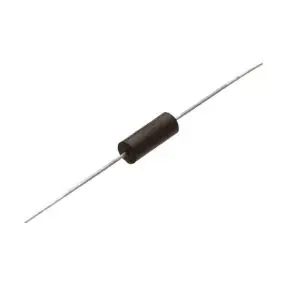

M15305 Qualified Molded Unshielded Coil Inductor
