MLRF3013-470K

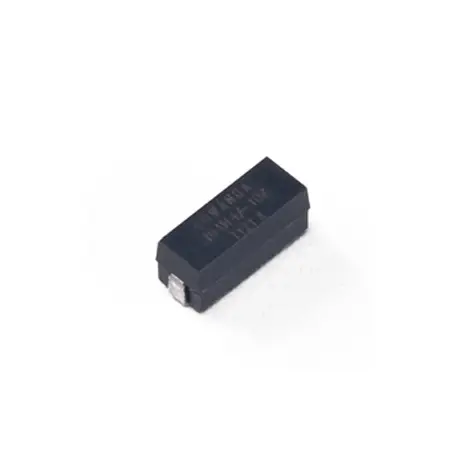

Gowanda’s MLRF3013-470K is a high-quality, reliable electronic component, specifically a M83446 Qualified Molded Unshielded Chip Inductor. It features a compact design with dimensions of 7.62 × 2.67 × 3.18 mm and a weight of 0.301 g, making it suitable for space-constrained applications. This Surface Mount Technology (SMT) component is part of the MLRF3013 series and is designed for QPL application grades. It offers an inductance of 0.47 µH with a direct current resistance (DCR) of 0.35 Ω and a current rating of 0.66 A DC. The inductor operates effectively across a frequency range, with a self-resonant frequency (SRF) of 330 MHz and a test frequency of 25 MHz, ensuring optimal performance. It has a minimum quality factor (Q MIN) of 30 and a dielectric withstanding voltage (DWV) of 200, 500. The product is rated for an operating temperature range of -55°C to +125°C and has a moisture sensitivity level (MSL) of 1, indicating high reliability in various environments. The termination type is Pb with a Sn63Pb37 finish, and the core is made of phenolic material. It is packaged in tape and reel (T&R) format and is fungal inert, ensuring durability and longevity in diverse applications.
