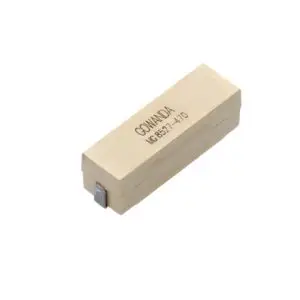

SMG8527-150JLF

Gowanda’s SMG8527-150JLF is a high-quality, reliable molded non-magnetic SMT inductor designed for medical applications. Weighing 3.1 grams and measuring 21.84 × 6.6 × 6.86 mm, this inductor is part of the SMG8527 series and features a surface-mount technology (SMT) mounting type. It offers an inductance of 0.15 µH with a minimum Q factor of 25 at a test frequency of 25 MHz. The device has a DC resistance of 0.058 ohms and a self-resonant frequency of 396 MHz, with a current rating of 2.72 A DC and a tolerance of ±5%. The inductor is RoHS compliant with a SnCu termination finish, operates within a temperature range of -55°C to +125°C, and has a moisture sensitivity level of 1. It is packaged in tape and reel format for ease of use in automated assembly processes.

Weight 3.1 g
Dimensions 21.84 × 6.6 × 6.86 mm
Series

SMG8527

Mounting Type

SMT

Application Grade

Medical

Inductance (µH)

0.15

Q MIN

25

Test Freq (MHz)

25

DCR (Ω)

0.058

SRF (MHz)

396

Current Rating (A DC)

2.72

Tolerance

±5%

Termination Type

RoHS

Termination Finish

SnCu

Core

Non-Magnetic

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Molded Non-Magnetic SMT Inductor
