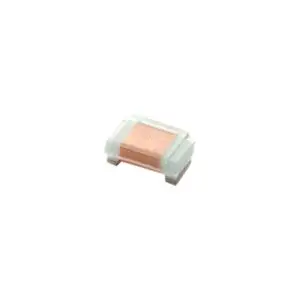

Gowanda’s SMP0603-018K is a Ceramic SMT High Current Chip Inductor designed for high-quality and reliable performance in electronic applications. Weighing just 0.05 grams, this compact component measures 0.071 × 0.033 × 0.04 mm and belongs to the SMP0603 series. It features a surface-mount technology (SMT) mounting type and is suitable for COTS+ application grades. With an inductance of 0.018 µH, a DCR of 0.025 Ω, and a current rating of 2.2 A DC, it operates efficiently at a self-resonant frequency (SRF) of 2600 MHz and a test frequency of 250 MHz. The inductor offers a minimum Q factor of 40 and a tolerance of ±10%. It is RoHS compliant with an Au termination finish, utilizing a ceramic core and is not shielded. The operating temperature ranges from -40°C to +125°C, with a moisture sensitivity level (MSL) of 1, and is available in tape and reel (T&R) packaging.
| Weight | 0.05 g |
|---|---|
| Dimensions | 0.071 × 0.033 × 0.04 mm |
| Series | SMP0603 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 0.018 |
| DCR (Ω) | 0.025 |
| Current Rating (A DC) | 2.2 |
| SRF (MHz) | 2600 |
| Test Freq (MHz) | 250 |
| Q MIN | 40 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Au |
| Core | Ceramic |
| Shielded | No |
| Operating Temperature | -40°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Ceramic SMT High Current Chip Inductor
