Gowanda’s SMP3316LP-331MLF is a low profile, unshielded open construction inductor designed for high reliability in electronic applications. Weighing 1.2 grams and measuring 13.46 × 10.67 × 5 mm, this inductor is part of the SMP3316LP series and is suitable for surface mount technology (SMT). It is categorized under the COTS+ application grade, offering an inductance of 3.3 µH with a direct current resistance (DCR) of 0.0128 Ω. The inductor supports a current rating of 6.5 A DC and a saturation current (I SAT) of 7 A DC, with a tolerance of ±20%. It features RoHS-compliant termination with a Sn100 finish and utilizes a ferrite core. Operating efficiently within a temperature range of -55°C to +125°C, it has a moisture sensitivity level (MSL) of 1 and is available in tape and reel (T&R) packaging.
| Weight | 1.2 g |
|---|---|
| Dimensions | 13.46 × 10.67 × 5 mm |
| Series | SMP3316LP |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 3.3 |
| DCR (Ω) | 0.0128 |
| Current Rating (A DC) | 6.5 |
| I SAT (A DC) | 7 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |

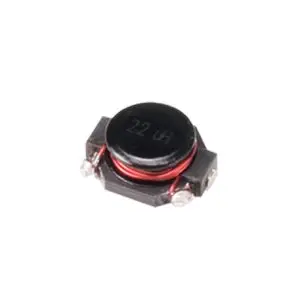

Low Profile Unshielded Open Construction Inductor
