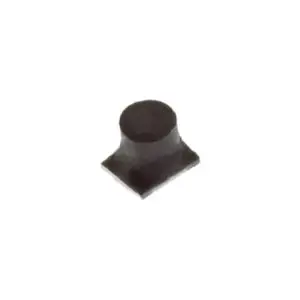

Gowanda’s SMRF1512-012M is an unshielded epoxy-coated chip inductor designed for high reliability in electronic applications. This component, part of the SMRF1512 series, features a compact size with dimensions of 3.94 × 3.175 × 3.56 mm and a weight of 0.12 g. It is suitable for surface mount technology (SMT) and is classified under the COTS+ application grade, ensuring compliance with commercial off-the-shelf standards. The inductor offers an inductance of 0.012 µH, a direct current resistance (DCR) of 0.04 Ω, and a current rating of 1 A DC. It operates effectively within a frequency range, with a self-resonant frequency (SRF) of 1800 MHz and a test frequency of 150 MHz, maintaining a minimum quality factor (Q MIN) of 70. The component is RoHS compliant with gold termination finish and is constructed with a powdered iron core. It operates reliably across a wide temperature range from -55°C to +125°C and has a moisture sensitivity level (MSL) of 1, making it suitable for various demanding applications. The SMRF1512-012M is available in tape and reel packaging for efficient handling and assembly.
| Weight | 0.12 g |
|---|---|
| Dimensions | 3.94 × 3.175 × 3.56 mm |
| Series | SMRF1512 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 0.012 |
| DCR (Ω) | 0.04 |
| Current Rating (A DC) | 1 |
| SRF (MHz) | 1800 |
| Test Freq (MHz) | 150 |
| Q MIN | 70 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Au |
| Core | Powdered Iron |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Unshielded Epoxy-Coated Chip Inductor , COTS M83446/10
