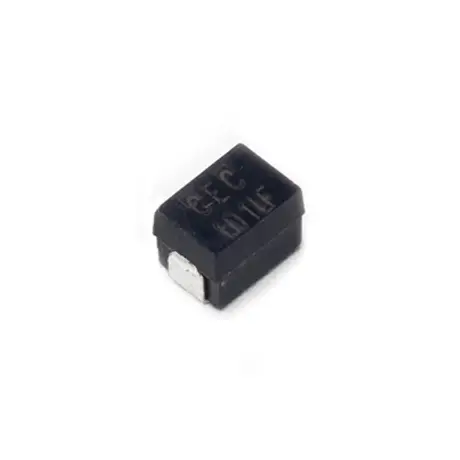

Gowanda’s SMRF1812T-681MLF is a high-quality, reliable electronic component designed for demanding applications. This molded unshielded temperature stable inductor weighs 0.15 grams and measures 4.2 × 3 × 2.9 mm, making it compact yet efficient. Part of the SMRF1812T series, it features surface mount technology (SMT) and is classified as COTS+ application grade, ensuring suitability for commercial off-the-shelf applications. With an inductance of 6.8 µH, a DCR of 1.3 Ω, and a current rating of 0.369 A DC, it operates effectively within a frequency range, boasting a self-resonant frequency (SRF) of 27 MHz and a test frequency of 7.9 MHz. The inductor has a Q minimum of 25 and a tolerance of ±20%, with a powdered iron core and a RoHS-compliant Sn100 termination finish. It is designed to function in temperatures ranging from -55°C to +125°C, with a moisture sensitivity level (MSL) of 1, and is packaged in tape and reel (T&R) format. Additionally, it is fungal inert, ensuring durability and reliability in various environments.
| Weight | 0.15 g |
|---|---|
| Dimensions | 4.2 × 3 × 2.9 mm |
| Series | SMRF1812T |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 6.8 |
| DCR (Ω) | 1.3 |
| Current Rating (A DC) | 0.369 |
| SRF (MHz) | 27 |
| Test Freq (MHz) | 7.9 |
| Q MIN | 25 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Powdered Iron |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
Molded Unshielded Temperature Stable Inductor
