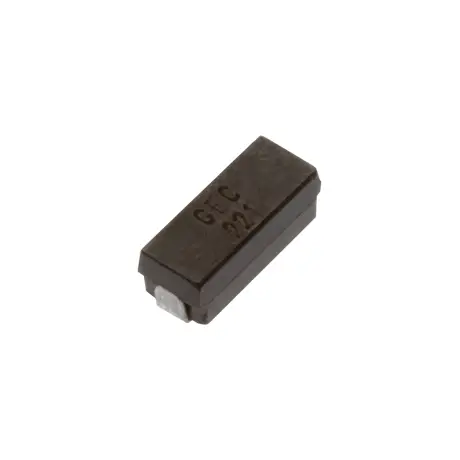

Gowanda’s SMRF2510-682K is a high-quality molded unshielded inductor designed for reliable performance in electronic applications. With a compact size of 5.97 × 2.16 × 2.29 mm and a weight of 1.8 g, it is suitable for surface mount technology (SMT) installations. This inductor features an inductance of 68 µH, a DCR of 13.8 Ω, and a current rating of 0.058 A DC, making it ideal for COTS+ grade applications. It operates effectively within a frequency range, with an SRF of 10 MHz and a test frequency of 2.5 MHz, ensuring a Q MIN of 25. The SMRF2510-682K is built with a powdered iron core and has a termination finish of Sn63Pb37, with a tolerance of ±10%. It is designed to withstand operating temperatures from -55°C to +105°C and is packaged in tape and reel (T&R) format. Additionally, it is fungal inert and has an MSL of 1, ensuring durability and reliability in various environments.
| Weight | 1.8 g |
|---|---|
| Dimensions | 5.97 × 2.16 × 2.29 mm |
| Series | SMRF2510 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 68 |
| DCR (Ω) | 13.8 |
| Current Rating (A DC) | 0.058 |
| SRF (MHz) | 10 |
| Test Freq (MHz) | 2.5 |
| Q MIN | 25 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Core | Powdered Iron |
| Shielded | No |
| Operating Temperature | -55°C to +105°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
Molded Unshielded Inductor
