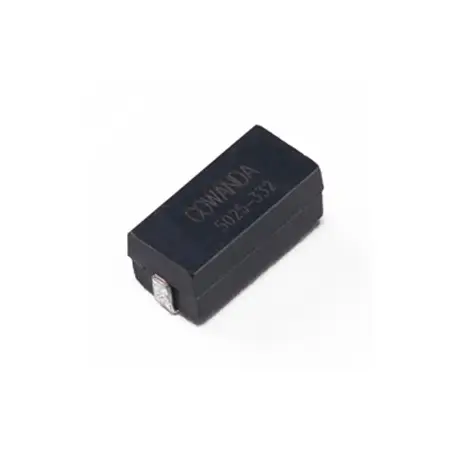

Gowanda’s SMRF5025-363M is a high-quality molded unshielded inductor designed for reliable performance in various applications. Weighing 0.95 grams and measuring 12.45 × 5.84 × 5.33 mm, this inductor is part of the SMRF5025 series and features surface mount technology (SMT) for easy integration. It is classified as COTS+ application grade, offering an inductance of 360 µH with a direct current resistance (DCR) of 12.5 Ω and a current rating of 0.171 A DC. The inductor operates at a self-resonant frequency (SRF) of 4.8 MHz and is tested at a frequency of 0.79 MHz, with a minimum Q factor of 65 and a tolerance of ±20%. It uses powdered iron as the core material and is shielded for enhanced performance. The SMRF5025-363M is designed to withstand operating temperatures ranging from -55°C to +125°C and has a moisture sensitivity level (MSL) of 1. It features Pb termination with a Sn63Pb37 finish and is packaged in tape and reel (T&R) format. Additionally, it is fungal inert, ensuring durability in various environments.
| Weight | 0.95 g |
|---|---|
| Dimensions | 12.45 × 5.84 × 5.33 mm |
| Series | SMRF5025 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 360 |
| DCR (Ω) | 12.5 |
| Current Rating (A DC) | 0.171 |
| SRF (MHz) | 4.8 |
| Test Freq (MHz) | 0.79 |
| Q MIN | 65 |
| Tolerance | ±20% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Core | Powdered Iron |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
Molded Unshielded Inductor
