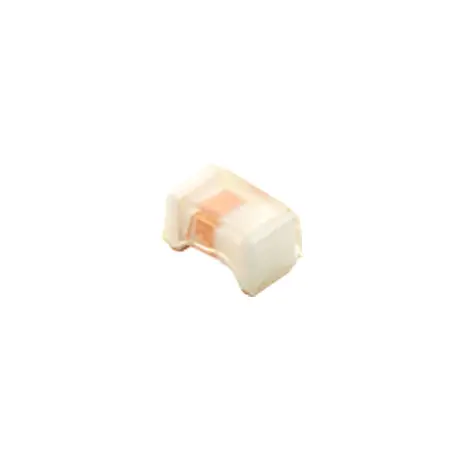

CC4H1812 SERIES

Compact Size: Designed in a compact package, facilitating integration into space-constrained applications.
Ceramic Core Construction: Utilizes a ceramic core for improved performance characteristics, including higher Q factors and self-resonant frequency (SRF).
Applications: Ideal for use in communication, radar, medical devices, and other high-frequency RF applications.

PARAMETRIC SEARCH

Name	Mounting	Inductance (µH)	DCR (Ω)	Current Rating (A DC)	SRF (MHz)	Tolerance	Termination	hf:tax:pa_mounting-type	hf:tax:pa_inductance-µh	hf:tax:pa_dcr-ω	hf:tax:pa_current-rating-a-dc	hf:tax:pa_srf-mhz	hf:tax:pa_tolerance	hf:tax:pa_termination-type	hf:tax:pa_series
CC4H1812-100M	SMT	100	0.135	1.56	1000	±20%	RoHS	smt	100	0-135	1-56	1000	%c2%b120	rohs	cc4h1812
CC4H1812-100K	SMT	100	0.135	1.56	1000	±10%	RoHS	smt	100	0-135	1-56	1000	%c2%b110	rohs	cc4h1812
CC4H1812-100J	SMT	100	0.135	1.56	1000	±5%	RoHS	smt	100	0-135	1-56	1000	%c2%b15	rohs	cc4h1812
CC4H1812-100G	SMT	100	0.135	1.56	1000	±2%	RoHS	smt	100	0-135	1-56	1000	%c2%b12	rohs	cc4h1812
CC4H1812-082M	SMT	82	0.135	1.56	1000	±20%	RoHS	smt	82	0-135	1-56	1000	%c2%b120	rohs	cc4h1812
CC4H1812-082K	SMT	82	0.135	1.56	1000	±10%	RoHS	smt	82	0-135	1-56	1000	%c2%b110	rohs	cc4h1812
CC4H1812-082J	SMT	82	0.135	1.56	1000	±5%	RoHS	smt	82	0-135	1-56	1000	%c2%b15	rohs	cc4h1812
CC4H1812-082G	SMT	82	0.135	1.56	1000	±2%	RoHS	smt	82	0-135	1-56	1000	%c2%b12	rohs	cc4h1812
CC4H1812-068M	SMT	68	0.135	1.56	1100	±20%	RoHS	smt	68	0-135	1-56	1100	%c2%b120	rohs	cc4h1812
CC4H1812-068K	SMT	68	0.135	1.56	1100	±10%	RoHS	smt	68	0-135	1-56	1100	%c2%b110	rohs	cc4h1812
CC4H1812-068J	SMT	68	0.135	1.56	1100	±5%	RoHS	smt	68	0-135	1-56	1100	%c2%b15	rohs	cc4h1812
CC4H1812-068G	SMT	68	0.135	1.56	1100	±2%	RoHS	smt	68	0-135	1-56	1100	%c2%b12	rohs	cc4h1812
CC4H1812-056M	SMT	56	0.135	1.56	1200	±20%	RoHS	smt	56	0-135	1-56	1200	%c2%b120	rohs	cc4h1812
CC4H1812-056K	SMT	56	0.135	1.56	1200	±10%	RoHS	smt	56	0-135	1-56	1200	%c2%b110	rohs	cc4h1812
CC4H1812-056J	SMT	56	0.135	1.56	1200	±5%	RoHS	smt	56	0-135	1-56	1200	%c2%b15	rohs	cc4h1812
CC4H1812-056G	SMT	56	0.135	1.56	1200	±2%	RoHS	smt	56	0-135	1-56	1200	%c2%b12	rohs	cc4h1812
CC4H1812-047M	SMT	47	0.135	1.56	1300	±20%	RoHS	smt	47	0-135	1-56	1300	%c2%b120	rohs	cc4h1812
CC4H1812-047K	SMT	47	0.135	1.56	1300	±10%	RoHS	smt	47	0-135	1-56	1300	%c2%b110	rohs	cc4h1812
CC4H1812-047J	SMT	47	0.135	1.56	1300	±5%	RoHS	smt	47	0-135	1-56	1300	%c2%b15	rohs	cc4h1812
CC4H1812-047G	SMT	47	0.135	1.56	1300	±2%	RoHS	smt	47	0-135	1-56	1300	%c2%b12	rohs	cc4h1812
CC4H1812-039M	SMT	39	0.12	1.72	1400	±20%	RoHS	smt	39	0-12	1-72	1400	%c2%b120	rohs	cc4h1812
CC4H1812-039K	SMT	39	0.12	1.72	1400	±10%	RoHS	smt	39	0-12	1-72	1400	%c2%b110	rohs	cc4h1812
CC4H1812-039J	SMT	39	0.12	1.72	1400	±5%	RoHS	smt	39	0-12	1-72	1400	%c2%b15	rohs	cc4h1812
CC4H1812-039G	SMT	39	0.12	1.72	1400	±2%	RoHS	smt	39	0-12	1-72	1400	%c2%b12	rohs	cc4h1812
CC4H1812-033M	SMT	33	0.11	1.79	1500	±20%	RoHS	smt	33	0-11	1-79	1500	%c2%b120	rohs	cc4h1812
CC4H1812-033K	SMT	33	0.11	1.79	1500	±10%	RoHS	smt	33	0-11	1-79	1500	%c2%b110	rohs	cc4h1812
CC4H1812-027M	SMT	27	0.08	2.1	1800	±20%	RoHS	smt	27	0-08	2-1	1800	%c2%b120	rohs	cc4h1812
CC4H1812-027K	SMT	27	0.08	2.1	1800	±10%	RoHS	smt	27	0-08	2-1	1800	%c2%b110	rohs	cc4h1812
CC4H1812-022M	SMT	22	0.08	2.1	2400	±20%	RoHS	smt	22	0-08	2-1	2400	%c2%b120	rohs	cc4h1812
CC4H1812-022K	SMT	22	0.08	2.1	2400	±10%	RoHS	smt	22	0-08	2-1	2400	%c2%b110	rohs	cc4h1812
CC4H1812-018M	SMT	18	0.07	2.25	2600	±20%	RoHS	smt	18	0-07	2-25	2600	%c2%b120	rohs	cc4h1812
CC4H1812-018K	SMT	18	0.07	2.25	2600	±10%	RoHS	smt	18	0-07	2-25	2600	%c2%b110	rohs	cc4h1812
CC4H1812-015M	SMT	15	0.06	2.43	2900	±20%	RoHS	smt	15	0-06	2-43	2900	%c2%b120	rohs	cc4h1812
CC4H1812-015K	SMT	15	0.06	2.43	2900	±10%	RoHS	smt	15	0-06	2-43	2900	%c2%b110	rohs	cc4h1812
CC4H1812-012M	SMT	12	0.06	2.43	3300	±20%	RoHS	smt	12	0-06	2-43	3300	%c2%b120	rohs	cc4h1812
CC4H1812-012K	SMT	12	0.06	2.43	3300	±10%	RoHS	smt	12	0-06	2-43	3300	%c2%b110	rohs	cc4h1812
CC4H1812-010M	SMT	10	0.06	2.43	3700	±20%	RoHS	smt	10	0-06	2-43	3700	%c2%b120	rohs	cc4h1812
CC4H1812-010K	SMT	10	0.06	2.43	3700	±10%	RoHS	smt	10	0-06	2-43	3700	%c2%b110	rohs	cc4h1812

Notes

Current Rating is based on a 35°C temperature rise at an ambient temperature of 90°C
Suitable for reflow soldering
Flat top cover for pick-and-place
Excellent for high frequency applications
No internal solder connection increases reliability
Very tight distribution within lots
Extremely high SRF; Exceptional Q
High current handling capability
Low DC resistance
MSL Rating: 1
Materials are fungus-inert to meet method 508 of MIL-STD-810H
Custom designs are available to meet your specific requirements;
please contact factory

Termination:

Gold (Au)

Environmental

Environmental:

RoHS Compliant

Operating Temperature Range:

-55°C to +125°C

Storage Temperature:

-55°C to +125°C
