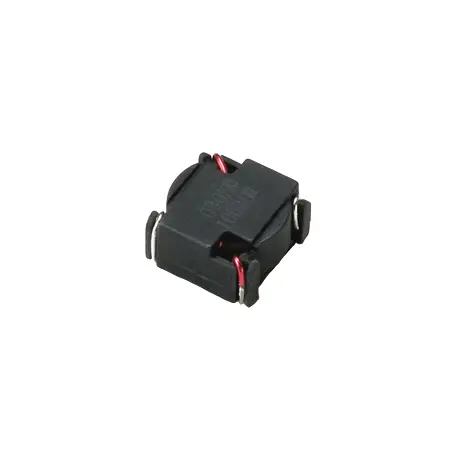

Gowanda’s 030KM1002SM is a high-quality wirewound toroidal inductor designed for demanding applications. Weighing 1.8 grams, it features compact dimensions of 11.18 × 11.05 × 9.14 mm and belongs to the KMSM series. This surface-mount technology (SMT) component is crafted for COTS+ application grade, ensuring reliability and performance. It offers an inductance of 10 µH with a direct current resistance (DCR) of 0.05 Ω and a self-resonant frequency (SRF) of 35 MHz. The inductor supports a current rating of 2.56 A DC, with incremental current limits of 800 mA DC for a 10% change and 1600 mA DC for a 20% change. It maintains a tolerance of ±10% and features Pb termination with a Sn63Pb37 finish. The operating temperature ranges from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and it is available in tape and reel (T&R) packaging.
| Weight | 1.8 g |
|---|---|
| Dimensions | 11.18 × 11.05 × 9.14 mm |
| Series | KMSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 10 |
| DCR (Ω) | 0.05 |
| SRF (MHz) | 35 |
| Current Rating (A DC) | 2.56 |
| INC I L (Δ10% mA DC) | 800 |
| INC I L (Δ20% mA DC) | 1600 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | T&R |
Wirewound Toroidal Inductor
