28MG181M

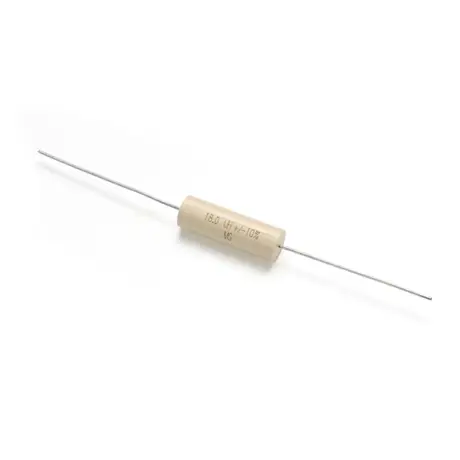

Gowanda’s 28MG181M is a molded non-magnetic inductor designed for medical applications, showcasing the company’s commitment to high-quality and reliable electronic components. This inductor weighs 2.65 grams and measures 22.86 × 7.137 × 7.137 mm, with a through-hole mounting type. It belongs to the 28MG series and offers an inductance of 1.8 µH with a Q minimum of 60 at a test frequency of 7.9 MHz. The device features a DCR of 0.135 Ω and an SRF of 140 MHz, supporting a current rating of 1.75 A DC with a tolerance of ±20%. The inductor is constructed with a non-magnetic core and is not shielded, operating efficiently within a temperature range of -55°C to +125°C. It has a moisture sensitivity level of 1 and is packaged in tape and reel format, with Pb termination type and Sn63Pb37 termination finish.

Weight 2.65 g
Dimensions 22.86 × 7.137 × 7.137 mm
Series

28MG

Mounting Type

THT

Application Grade

Medical

Inductance (µH)

1.8

Q MIN

60

Test Freq (MHz)

7.9

DCR (Ω)

0.135

SRF (MHz)

140

Current Rating (A DC)

1.75

Tolerance

±20%

Termination Type

Pb

Termination Finish

Sn63Pb37

Core

Non-Magnetic

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Molded Non-Magnetic Inductor

Notes
