Gowanda’s 894KM5003HCLF is a high-quality, horizontally mounted potted toroidal inductor, part of the KMHC series, designed for reliable performance in demanding applications. With a weight of 65 grams and dimensions of 36.83 × 36.83 × 21.59 mm, this inductor is suitable for through-hole technology (THT) mounting and is classified under the COTS+ application grade. It offers an inductance of 500 µH, a direct current resistance (DCR) of 0.131 Ω, and a self-resonant frequency (SRF) of 0.6 MHz. The inductor supports a current rating of 3.4 A DC, with incremental current levels (Δ10% mA DC) at 1400 and (Δ20% mA DC) at 2500. It features a tolerance of ±10%, RoHS-compliant termination type, and a Sn/Cu termination finish. The operating temperature range is from -55°C to +130°C, with a moisture sensitivity level (MSL) of 1, and it is available in bulk packaging.
| Weight | 65 g |
|---|---|
| Dimensions | 36.83 × 36.83 × 21.59 mm |
| Series | KMHC |
| Mounting Type | THT |
| Application Grade | COTS+ |
| Inductance (µH) | 500 |
| DCR (Ω) | 0.131 |
| SRF (MHz) | 0.6 |
| Current Rating (A DC) | 3.4 |
| INC I L (Δ10% mA DC) | 1400 |
| INC I L (Δ20% mA DC) | 2500 |
| Tolerance | ±10% |
| Termination Type | RoHS |
| Termination Finish | Sn/Cu |
| Operating Temperature | -55°C to +130°C |
| MSL | 1 |
| Packaging | Bulk |

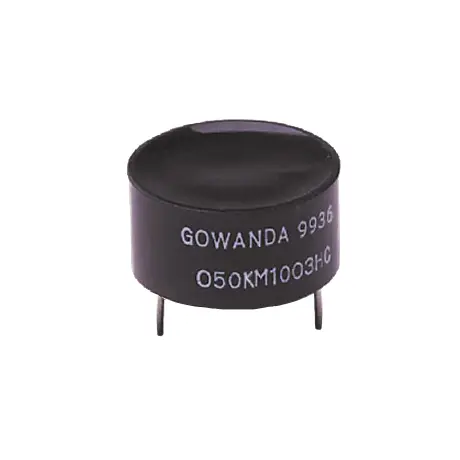

Horizontal Mount Potted Toroidal Inductor
