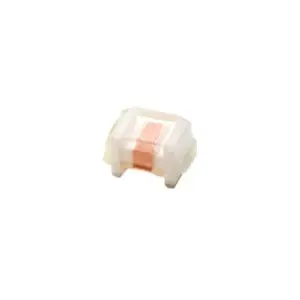

CC4H1210-082J

Gowanda’s CC4H1210-082J is a high-performance ceramic surface mount chip inductor designed for demanding electronic applications. Weighing just 0.065 grams and measuring 3.3 × 2.41 × 2.41 mm, this inductor is part of the CC4H1210 series and features a surface mount technology (SMT) for easy integration. It offers an inductance of 82 µH with a minimum Q factor of 40, tested at a frequency of 50 MHz. The device has a DC resistance of 0.15 Ω and a self-resonant frequency of 1000 MHz, supporting a current rating of 1.3 A DC. With a tolerance of ±5%, it is RoHS compliant and features a copper termination finish. The inductor operates efficiently across a wide temperature range from -55°C to +125°C and is rated at moisture sensitivity level 1. Packaged in tape and reel (T&R) format, it is also fungal inert, ensuring reliability and durability in various environments.

Weight 0.065 g
Dimensions 3.3 × 2.41 × 2.41 mm
Series

CC4H1210

Mounting Type

SMT

Inductance (µH)

82

Q MIN

40

Test Freq (MHz)

50

DCR (Ω)

0.15

SRF (MHz)

1000

Current Rating (A DC)

1.3

Tolerance

±5%

Termination Type

RoHS

Termination Finish

Cu

Core

Ceramic

Shielded

No

Operating Temperature

-55°C to +125°C

MSL

1

Packaging

T&R

Fungal Inert

Yes

Ceramic High Performance Surface Mount Chip Inductor
