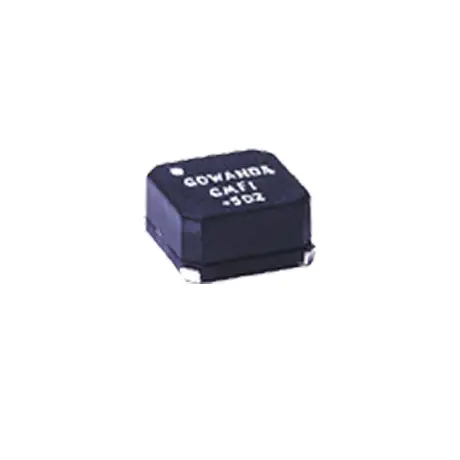

Gowanda’s CMF1-1004SMLF is a high-quality common mode transformer choke designed for reliable performance in electronic applications. This component, part of the CMF1SM series, features a compact size with dimensions of 13 × 9.95 × 5.97 mm and a weight of 1 gram. It is surface-mountable (SMT) and suitable for COTS+ application grades, offering an inductance of 1000 µH and a direct current resistance (DCR) of 0.658 Ω. With a current rating of 0.5 A DC and an interwinding capacitance of 3.45 pF, it ensures efficient operation. The choke is shielded and operates within a temperature range of -55°C to +125°C, making it versatile for various environments. It is RoHS compliant with a Sn100 termination finish and has a moisture sensitivity level (MSL) of 1. Packaged in tape and reel (T&R) format, it is also fungal inert, ensuring durability and reliability in demanding conditions.
| Weight | 1 g |
|---|---|
| Dimensions | 13 × 9.95 × 5.97 mm |
| Series | CMF1SM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 1000 |
| DCR (Ω) | 0.658 |
| Current Rating (A DC) | 0.5 |
| Interwinding Capacitance (pF) | 3.45 |
| Leakage Inductance (µH) | 7.96 |
| DWV | 1250 |
| Tolerance | ±30% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | Yes |
Common Mode Transformer Choke
