Gowanda’s CMN3-1504VSM is a high-quality, reliable vertical mount common mode toroidal choke designed for demanding applications. With dimensions of 23.5 × 16.51 × 23.5 mm, this SMT component is part of the CMN3VSM series and is suitable for COTS+ application grades. It features an inductance of 1500 µH, a DCR of 0.0051 Ω, and a current rating of 10 A DC. The choke has an interwinding capacitance of 4 pF and a leakage inductance of 1.6 µH, with a dielectric withstanding voltage of 1250. It offers a tolerance of ±35% and uses Pb termination with a Sn63Pb37 finish. The component is shielded, operates within a temperature range of -55°C to +125°C, and has an MSL of 1. It is packaged in tape and reel but is not fungal inert.
| Dimensions | 23.5 × 16.51 × 23.5 mm |
|---|---|
| Series | CMN3VSM |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 1500 |
| DCR (Ω) | 0.0051 |
| Current Rating (A DC) | 10 |
| Interwinding Capacitance (pF) | 4 |
| Leakage Inductance (µH) | 1.6 |
| DWV | 1250 |
| Tolerance | ±35% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
| Fungal Inert | No |

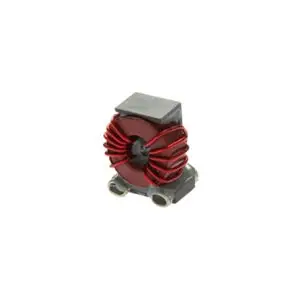

Vertical Mount Common Mode Toroidal Choke
