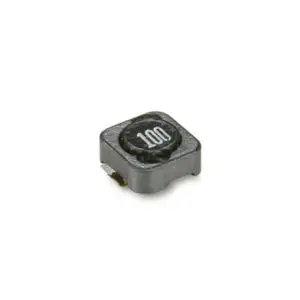

Gowanda’s GP3062-151MLF is a shielded power choke designed for high reliability in electronic applications. Weighing 0.4 grams and measuring 6.6 × 6.6 × 3 mm, this component is part of the GP3062 series and is suitable for surface mount technology (SMT). It is classified under COTS+ application grade, offering an inductance of 150 µH with a direct current resistance (DCR) of 1.8 Ω and a current rating of 0.37 A DC. Tested at a frequency of 1 MHz, it features a tolerance of ±20% and is compliant with RoHS standards, utilizing Sn100 for termination finish. The core is made of ferrite and the component is shielded, ensuring optimal performance within an operating temperature range of -55°C to +125°C. It has a moisture sensitivity level (MSL) of 1 and is available in tape and reel (T&R) packaging.
| Weight | 0.4 g |
|---|---|
| Dimensions | 6.6 × 6.6 × 3 mm |
| Series | GP3062 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 150 |
| DCR (Ω) | 1.8 |
| Current Rating (A DC) | 0.37 |
| Test Freq (MHz) | 1 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Shielded Power Choke
