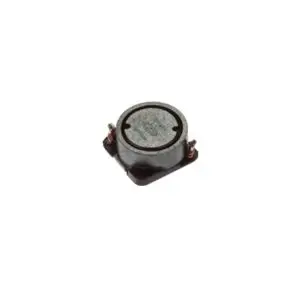

Gowanda’s GP3484S-331MLF is a high-quality shielded power choke designed for demanding applications. Weighing just 0.47 grams and measuring 7.2 × 7.2 × 3.4 mm, this component is part of the GP3484S series and is suitable for surface mount technology (SMT). It is classified as COTS+ grade, ensuring reliability in commercial off-the-shelf applications. With an inductance of 330 µH, a direct current resistance (DCR) of 2.01 Ω, and a current rating of 220 A DC, it operates efficiently at a test frequency of 0.1 MHz. The component features a tolerance of ±20% and is RoHS compliant with a Sn100 termination finish. Constructed with a ferrite core and shielded for enhanced performance, it operates within a temperature range of -55°C to +125°C and has a moisture sensitivity level (MSL) of 1. It is available in tape and reel (T&R) packaging for convenient handling and assembly.
| Weight | 0.47 g |
|---|---|
| Dimensions | 7.2 × 7.2 × 3.4 mm |
| Series | GP3484S |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 330 |
| DCR (Ω) | 2.01 |
| Current Rating (A DC) | 220 |
| Test Freq (MHz) | 0.1 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | Yes |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Shielded Power Choke
