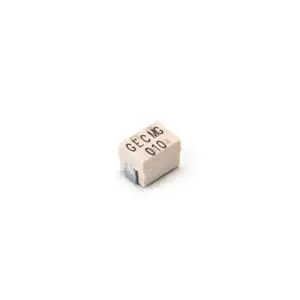

SMG1812-027JLF

Gowanda’s SMG1812-027JLF is a molded non-magnetic SMT inductor designed for medical applications, featuring a compact size with dimensions of 4.2 × 3 × 2.9 mm and a weight of 0.15 g. This inductor belongs to the SMG1812 series and is surface-mountable (SMT), offering an inductance of 0.27 µH with a Q minimum of 40 at a test frequency of 50 MHz. It has a direct current resistance (DCR) of 0.15 Ω and a self-resonant frequency (SRF) of 1000 MHz, with a current rating of 1 A DC and a tolerance of ±5%. The termination type is RoHS compliant with a SnCu finish, and it operates within a temperature range of -55°C to +125°C. The inductor is non-magnetic, unshielded, and has a moisture sensitivity level (MSL) of 1, packaged in tape and reel (T&R) format.
