Gowanda’s SMP3308LP-222MLF is a low profile, unshielded open construction inductor designed for high reliability in electronic applications. Weighing 0.65 grams and measuring 13.46 × 10.67 × 1.78 mm, this inductor is part of the SMP3308LP series and is suitable for surface mount technology (SMT). It features a COTS+ application grade, with an inductance of 22 µH, a direct current resistance (DCR) of 0.148 Ω, and a current rating of 1.5 A DC. The inductor can handle a saturation current (I SAT) of 2 A DC and has a tolerance of ±20%. It is RoHS compliant with a Sn100 termination finish and is constructed with a ferrite core. Operating efficiently in temperatures ranging from -55°C to +125°C, it has a moisture sensitivity level (MSL) of 1 and is available in tape and reel (T&R) packaging.
| Weight | 0.65 g |
|---|---|
| Dimensions | 13.46 × 10.67 × 1.78 mm |
| Series | SMP3308LP |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 22 |
| DCR (Ω) | 0.148 |
| Current Rating (A DC) | 1.5 |
| I SAT (A DC) | 2 |
| Tolerance | ±20% |
| Termination Type | RoHS |
| Termination Finish | Sn100 |
| Core | Ferrite |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |

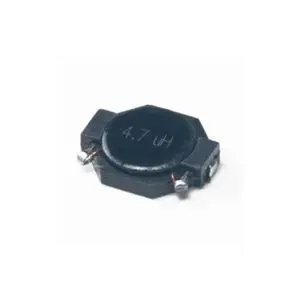

Low Profile Unshielded Open Construction Inductor
