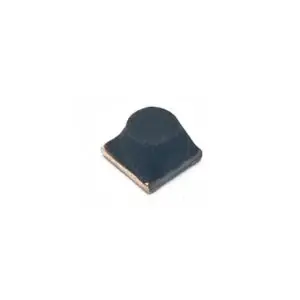

Gowanda’s SMRF1010-222MS is a surface mount epoxy coated chip inductor designed for high reliability in demanding applications. As part of the SMRF1010 series, this component features a compact size with dimensions of 2.28 × 2.28 × 2.16 mm and a weight of just 0.05 g. It is suitable for COTS+ application grade, offering an inductance of 22 µH and a DCR of 6.4 Ω. The inductor supports a current rating of 0.125 A DC and an SRF of 25 MHz, tested at a frequency of 2.5 MHz with a Q MIN of 25. It is built with a phenolic core and is not shielded, operating efficiently within a temperature range of -55°C to +125°C. The component is RoHS compliant with a Pb termination type and SnPb finish, ensuring durability and compliance with environmental standards. It is packaged in tape and reel (T&R) format, with a moisture sensitivity level (MSL) of 1, making it ideal for automated assembly processes.
| Weight | 0.05 g |
|---|---|
| Dimensions | 2.28 × 2.28 × 2.16 mm |
| Series | SMRF1010 |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 22 |
| DCR (Ω) | 6.4 |
| Current Rating (A DC) | 0.125 |
| SRF (MHz) | 25 |
| Test Freq (MHz) | 2.5 |
| Q MIN | 25 |
| DWV | 500, 80 |
| Tolerance | ±20% |
| Termination Type | Pb, RoHS |
| Termination Finish | SnPb |
| Core | Phenolic |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Surface Mount Epoxy Coated Chip Inductor, COTS M83446/04
