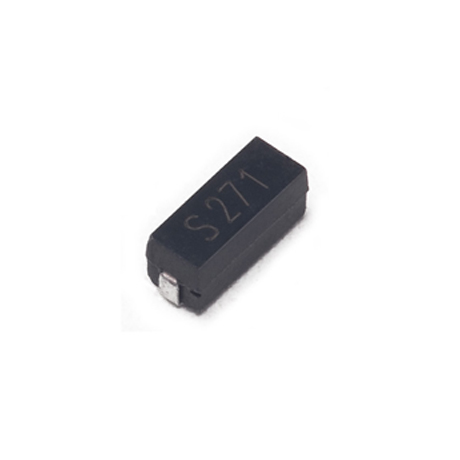

Gowanda’s SMRF3013S-563KLF is a high-quality molded shielded inductor designed for demanding applications. Weighing just 0.3 grams, it features compact dimensions of 7.62 × 2.79 × 3.18 mm and is part of the SMRF3013S series. This surface-mount technology (SMT) component is suitable for COTS+ grade applications, offering an inductance of 560 µH with a direct current resistance (DCR) of 19 Ω. It supports a current rating of 0.073 A DC and a saturation current of 0.012 A DC, with a self-resonant frequency (SRF) of 7 MHz and a test frequency of 0.79 MHz. The inductor has a minimum Q factor of 60 and a tolerance of ±10%. It features lead (Pb) termination with a Sn63Pb37 finish and operates effectively in temperatures ranging from -55°C to +125°C. With a moisture sensitivity level (MSL) of 1, it is packaged in tape and reel (T&R) format for efficient handling and installation.
| Weight | 0.3 g |
|---|---|
| Dimensions | 7.62 × 2.79 × 3.18 mm |
| Series | SMRF3013S |
| Mounting Type | SMT |
| Application Grade | COTS+ |
| Inductance (µH) | 560 |
| DCR (Ω) | 19 |
| Current Rating (A DC) | 0.073 |
| Saturation Current (A DC) | 0.012 |
| SRF (MHz) | 7 |
| Test Freq (MHz) | 0.79 |
| Q MIN | 60 |
| Tolerance | ±10% |
| Termination Type | Pb |
| Termination Finish | Sn63Pb37 |
| Shielded | No |
| Operating Temperature | -55°C to +125°C |
| MSL | 1 |
| Packaging | T&R |
Molded Shielded Inductor
